CALB L221N113 3.7 volt 113ah lithium nmc cells

» NMC cell » CALB L221N113 3.7 volt 113ah lithium nmc cells
  • CALB L221N113 3.7 volt 113ah lithium nmc cells

    CATEGORY AND TAGS:
    NMC cell

    CE, UL, MSDS and UN38.3 have been approved.(L221N113)3.7V 113Ah NMC battery cells was already passed all of the safety tests(overcharge, overdischarge, over temperature, short circuit, drop, crush tests, etc).

    enquiry
    • Specifications
    • FEATURES
    • APPLICATIONS
    • DOWNLOADS

    CALB L221N113 3.7 volt 113ah lithium nmc cells



    LYTH Battery – The Best Partner for your Lithium Battery Solution & High Performance

    The ternary material (NMC) is actually a synthesis of the advantages of LiCoO2、LiNiO2 and LiMnO2 materials. because of the obvious synergistic effect between Ni、Co and Mn, the properties of the NMC are better than that of a single set of layered cathode materials, which is considered to be one of the most promising new cathode materials.

    CE, UL, MSDS, and UN38.3 have been approved. (L221N113)3.7V 113Ah NMC battery cells were already passed all of the safety tests(overcharge, over-discharge, over-temperature, short circuit, drop, crush tests, etc).



    Battery Cell Type3.7V 113Ah NMC Battery cell
    Model NumberL1221N113A
    Nominal Voltage3.7V
    Nominal Capacity113Ah
    Cycle Life≥2000 cycles
    Working Voltage2.8-4.35V(T≥0℃ )

    2.2-4.35V(-30℃≤T<0℃)

    Internal Resistance0.4~0.6mΩ
    Charging Time~4h(Standard Charge )
    Recommended SOC WindowSOC:5%~97%
    Charging Temperature-20~55°C
    Discharging
    Temperature
    -30~55°C
    Dimensions(mm)L220.8mm x W33.36mm x H105.88mm
    Weight1800±25g
    Shell MaterialAluminium alloy

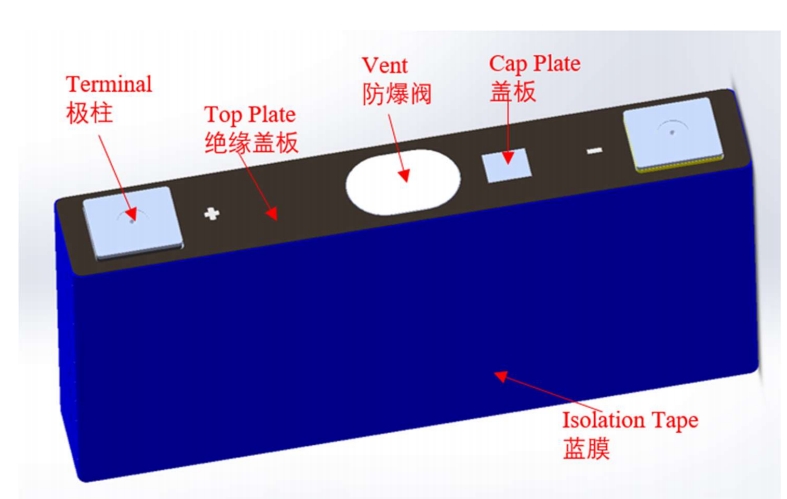

    Cell Dimensions

    • A Grade, New, with all test report
    • Highly safe, no fires, no explosions.
    • High Power Performance
    • High Energy Density
    • High Gravimetric and Volumetric Power Density.
    • Longer Cycle life

    E-bike, Golf cart, Solar street light, Forklift, UPS, yacht, AGV (Automated Guided Vehicle), RV( Recreational Vehicle), Electric vehicle, Energy storage system(ESS) for wind and solar power, Household storage system, etc.
