EVE LF50K LFP 3.2V 50Ah Lithium Iron Phosphate (LiFePO4) battery cell

» lifepo4 prismatic cells » EVE LF50K LFP 3.2V 50Ah Lithium Iron Phosphate (LiFePO4) battery cell

EVE LF50K LFP 3.2V 50Ah Lithium Iron Phosphate (LiFePO4) battery cell

CATEGORY AND TAGS:
lifepo4 prismatic cells

CE, UL, MSDS and UN38.3 have been approved. 3.2V 50Ah Lithium Iron Phosphate(LiFePO4) battery cells was already passed all of the safety tests(overcharge, overdischarge, AGV (Automated Guided Vehicle),RV( Recreational Vehicle) over temperature, short circuit, drop, crush, needle puncture tests, etc). These battery cells do not catch fire, no explosion and no leakage.

enquiry
  • Specifications
  • FEATURES
  • APPLICATIONS
  • DOWNLOADS

EVE LF50K LFP 3.2V 50Ah Lithium Iron Phosphate (LiFePO4) battery cell

LYTH Battery – The Top Battery company for your Lithium Battery Solution & High-Performance LiFePO4 Battery. LYTH LiFePO4 cells have a wide range of applications, such as utility and renewable(solar and wind) energy storage, electric and hybrid vehicles(buses, cars, and trucks), uninterruptible power supply (UPS) for data centers, cell tower/communications power, marine vessels, stationary power generators and AGV (Automated Guided Vehicle), RV( Recreational Vehicle) and etc.

Battery Cell Type LFP Phosphate Lithium (Lifepo4) battery cell
Model Number LF50K
Nominal Voltage 3.2V
Nominal Capacity 50Ah
AC Impedance resistance (1KHz) ≤0.7mΩ
Current of charge/discharge 0.5C/0.5C
Cut-off voltage of charge/discharge 3.65V/2.5V
Recommend SOC window 10%~90%
Charging Temperature 0℃~55℃
Discharging Temperature -20℃~55℃
Storage humidity <95%
Dimensions(mm) Height(total)       185.3±0.5mm

Height(subject)     180.8±0.5mm

Width             135.3±0.5mm

Thickness          29.3±0.7mm

Weight 1395±50G

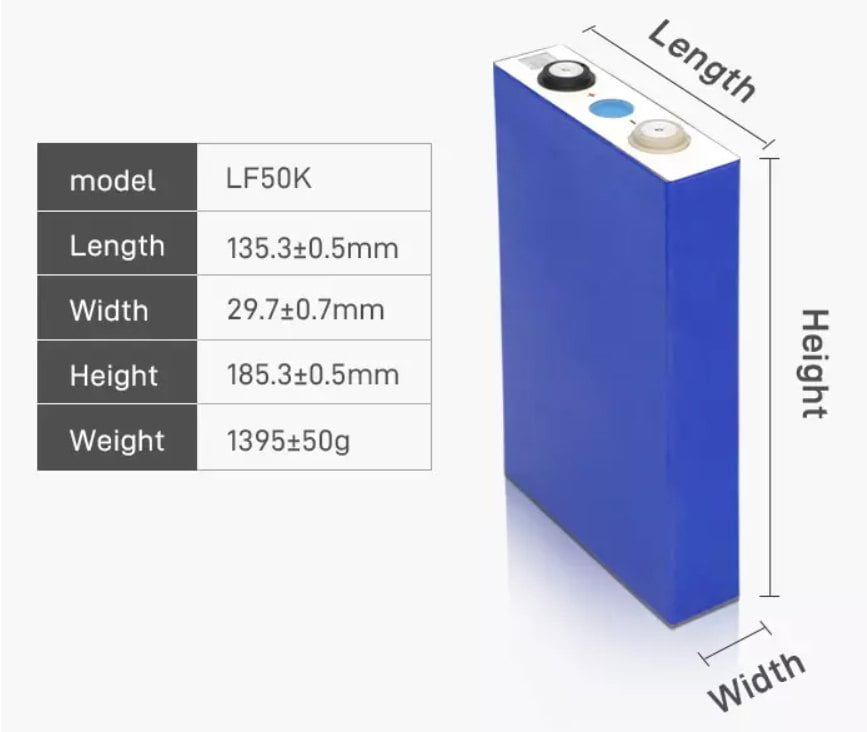

Cell Dimensions

EVE Model List

Model Capacity

(Ah)

Normal

Voltage(V)

Operating

Voltage Range(V)

Weight

(g)

Energy Density

(Wh/Kg)

LF50K 50 3.20 2.5~3.65 1395 114
LF50F 50 3.20 2.5~3.65 1050 152
LF80 80 3.20 2.5~3.65 1680 152
LF90K 90 3.20 2.5~3.65 1994 144
LF105 105 3.20 2.5~3.65 1980 169
LF173 173 3.20 2.5~3.65 3190 174
LF230 230 3.20 2.5~3.65 4140 178
LF280 280 3.20 2.5~3.65 5300 169
LF304 304 3.20 2.5~3.65 5490 177
INP87E 87 3.70 2.8~4.35 1364 243
INP114E 114 3.70 2.8~4.30 1755 240
  • A Grade, New, with all test report
  • Highly safe, no fires, no explosions.
  • High Power Performance
  • High Energy Density
  • High Gravimetric and Volumetric Power Density.
  • Longer Cycle life

E-bike, Golf cart, Solar street light, Forklift, UPS, yacht, AGV (Automated Guided Vehicle), RV( Recreational Vehicle), Electric vehicle, Energy storage system(ESS) for wind and solar power, Household storage system and etc.

Application of LiFePO4 prismatic cells-LYTH
