3.2V 120Ah Lithium LiFePO4 battery cells

» lifepo4 prismatic cells » 3.2V 120Ah Lithium LiFePO4 battery cells

3.2V 120Ah Lithium LiFePO4 battery cells

CATEGORY AND TAGS:
lifepo4 prismatic cells

CE, UL, MSDS and UN38.3 have been approved.(LYTH-F120)3.2V 120Ah Lithium Iron Phosphate(LiFePO4) battery cells was already passed all of the safety tests(overcharge, overdischarge, over temperature, short circuit, drop, crush, needle puncture tests, etc). These battery cells do not catch fire, no explosion and no leakage.



enquiry
  • Specifications
  • FEATURES
  • APPLICATIONS
  • DOWNLOADS

3.2V 120Ah Lithium LiFePO4 battery cells

LYTH Battery – The Best battery company for your Lithium Battery Solution & High Performance LiFePO4 Prismatic Battery. LYTH LiFePO4 cells have a wide range of applications, such as utility and renewable(solar and wind) energy storage,electric and hybrid vehicles(buses,cars,and trucks), AGV (Automated Guided Vehicle),RV( Recreational Vehicle)uninterruptible power supply (UPS) for data centers,cell tower/communications power,marine vessels,stationary power generators and much more.

Battery Cell Type Lithium Iron Phosphate (LiFePO4) battery
Model Number LYTH-F120
Nominal Voltage 3.2V
Nominal Capacity 120Ah
Cycle Life >2000 cycles
Working Voltage 2.5-3.65V
Internal Resistance ≤0.5mΩ
End of discharge Voltage 2.5V
Charge Method 0.3C  CC/CV
Max.Continuous charge current 120A
Nominal  Discharge Current 240A Maximum duration:3min
Max. Pulse Discharge Current 360A/10S
Dimensions(mm) L174mm x W48mm x H170mm
Weight 2.9±0.1KGS
Shell Material Aluminium

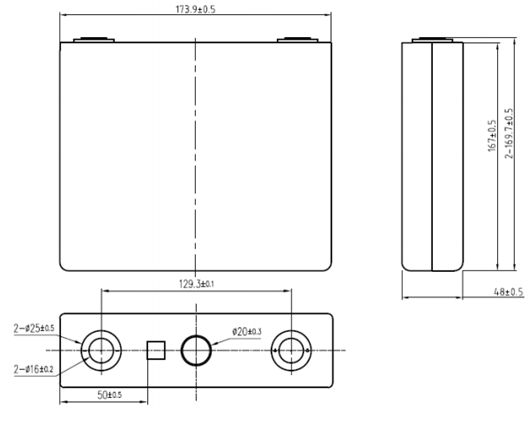

Cell Dimensions

discharged curve of 3.2V 120Ah Lithium battery























  • A Grade,New,with all test report
  • Real Capacity will be 130Ah
  • Highly safe, no fires, no explosions.
  • High Power Performance
  • High Energy Density ( 130~140wh/Kg)
  • High Gravimetric and Volumetric Power Density.
  • Longer Cycle life

E-bike, Golf cart, Solar street light, Forklift, UPS, yacht,AGV (Automated Guided Vehicle),RV( Recreational Vehicle), Electric vehicle, Energy storage system(ESS) for wind and solar power, Household storage system and etc.

Application of LiFePO4 prismatic cells-LYTH
