CE, UL, MSDS, and UN38.3 have been approved. (CALB L173F125)3.2V 125Ah Lithium Iron Phosphate(LiFePO4) battery cells were already passed all of the safety tests(overcharge, over-discharge, over-temperature, short circuit, drop, crush, needle puncture tests, etc). These battery cells do not catch fire, no explosion, and no leakage.
enquiryBattery Cell Type | Lithium Iron Phosphate (LiFePO4) battery cells |
Model Number | CALB L173F125 |
Nominal Voltage | 3.2V |
Nominal Capacity | 125Ah |
Cycle Life | >4000 times |
Working Voltage | 2.5-3.65V |
Internal Resistance | ≤0.9mΩ |
End of discharge Voltage | 2.5V |
Dimensions(mm) | 174.4mm x 36.4mm x 178mm |
Weight | 2.45±0.15KGS |
Charging Temperature | 0~60°C |
Discharging Temperature | -30~60°C |
Maximum Constant Discharging Current | 125A |
Shell Material | Aluminum |

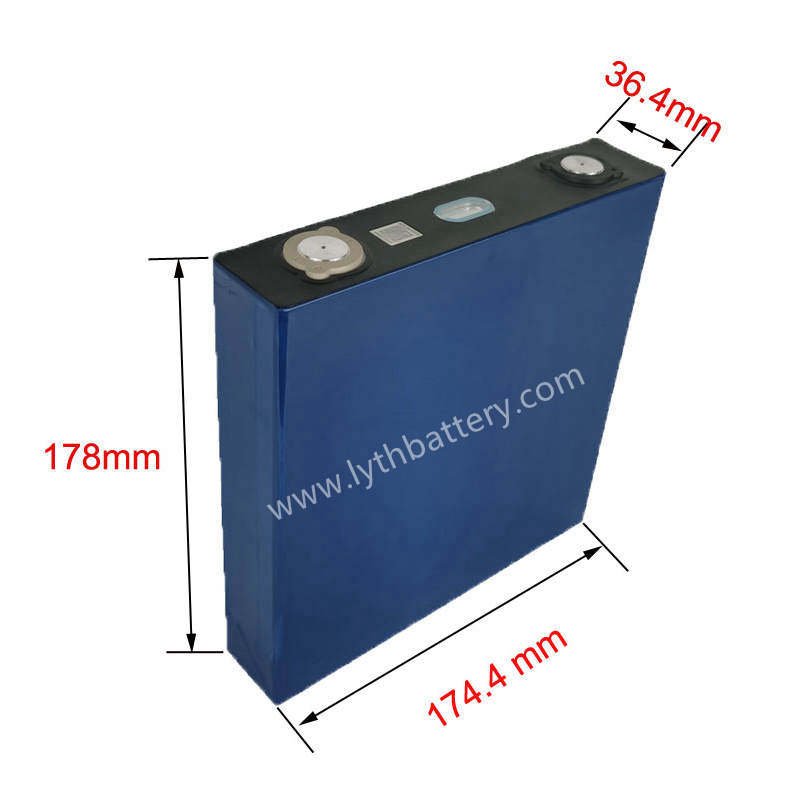

Cell Dimensions
• A Grade, New, with all test report
• Highly safe, no fires, no explosions.
• High Power Performance
• High Energy Density
• High Gravimetric and Volumetric Power Density.
• Longer Cycle life
Mini EV, Electric Vehicle, Electric Bus, Mini Electric Vehicles, Golf cart, Solar street light, Forklift, UPS, yacht, AGV (Automated Guided Vehicle), RV( Recreational Vehicle), Energy storage system(ESS) for wind and solar power, Household storage system and etc.
