EVE LF280 3.2V 280Ah lithium iron phosphate (lifepo4) battery cell

» lifepo4 prismatic cells » EVE LF280 3.2V 280Ah lithium iron phosphate (lifepo4) battery cell

EVE LF280 3.2V 280Ah lithium iron phosphate (lifepo4) battery cell

CATEGORY AND TAGS:
lifepo4 prismatic cells

CE, UL, MSDS and UN38.3 have been approved.3.2V 280Ah Lithium Iron Phosphate(LiFePO4) battery cells was already passed all of the safety tests(overcharge, overdischarge, AGV (Automated Guided Vehicle),RV( Recreational Vehicle) over temperature, short circuit, drop, crush, needle puncture tests, etc). These battery cells do not catch fire, no explosion and no leakage.

enquiry
  • Specifications
  • FEATURES
  • APPLICATIONS
  • DOWNLOADS

EVE LF280 3.2V 280Ah lithium iron phosphate (lifepo4) battery cell

LYTH Battery – The Best Partner for your Lithium Battery Solution & High-Performance LiFePO4 Prismatic Battery. LYTH LiFePO4 cells have a wide range of applications, such as utility and renewable (solar and wind) energy storage, electric vehicles, uninterruptible power supply (UPS) for data centers, cell tower/communications power, marine vessels, stationary power generators AGV (Automated Guided Vehicle), RV( Recreational Vehicle) and much more.

Typical Capacity 280Ah
Typical Voltage 3.2v
Weight 5.3kg

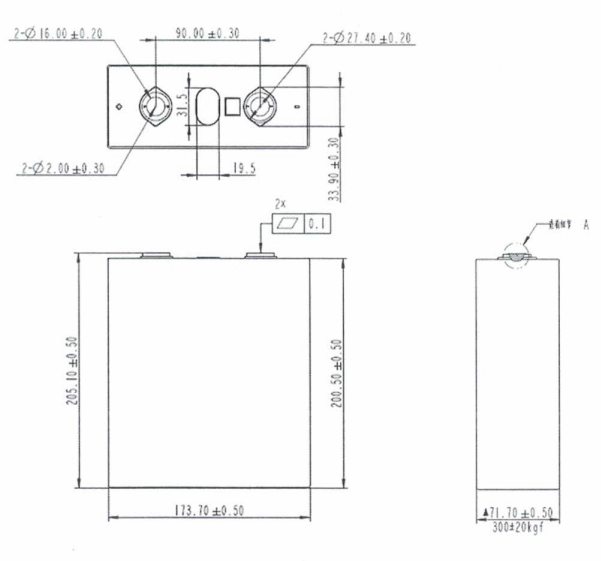

Dimension 173.7*71.5*204.8mm
AC Impedance Resistance ≤0.25mΩ
Standard charge and discharge/Discharge Current 0.5C/0.5C
Standard charge and discharge/Discharge Cut-off Voltage 3.65V/2.5V
Continuous Charge/Discharge Current 1C/1C
Pulse Charge/Discharge Current(30s) 2C/2C
Cycle life 3500 times
Recommended SOC window 10%~90%
Charging Working Temperature 0℃~60℃
Discharging Working Temperature -30℃~60℃





EVE Model List

Model Capacity      (Ah) Nominal voltage  (V) Operating Voltage Range(V) Operating Temperature Range(℃) Dimensions (mm) Weight(g) Energy Density (Wh/Kg)
LF50K 50 3.2 2.5~3.65 -20~55 29*135*185 1395 114
LF50F 50 3.2 2.5~3.66 -20~55 26*148*129 1050 152
LF80 80 3.2 2.5~3.67 -20~55 36*130*170 1680 152
LF90K 90 3.2 2.5~3.68 -20~55 36*130*200 1994 144
LF105 105 3.2 2.5~3.69 -20~55 36*130*200 1980 169
LF280 280 3.2 2.5~3.70 -20~55 71*173*204 5300 169





  • A Grade, New, with all test report
  • With CE, UL, MSDS, UN38.3
  • Highly safe, no fires, no explosions.
  • High Power Performance
  • High Energy Density ( 169wh/Kg)
  • High Gravimetric and Volumetric Power Density.
  • Longer Cycle life

E-bike, Golf cart, Solar street light, Forklift, UPS, yacht, AGV (Automated Guided Vehicle), RV( Recreational Vehicle), Electric vehicle, Energy storage system(ESS) for wind and solar power, Household storage system, etc.

Application of LiFePO4 prismatic cells-LYTH
